| Main Features： | |
 Qualcomm Eight Core Chip |  5.5-inch screen |
 6000mAh battery |  IP 65 1.5-meter drop test |
 WiFi/4G/Bluetooth |  CE certification, FCC |
| function： | |
 UHF RFID |  QR code |
 Fingerprint |

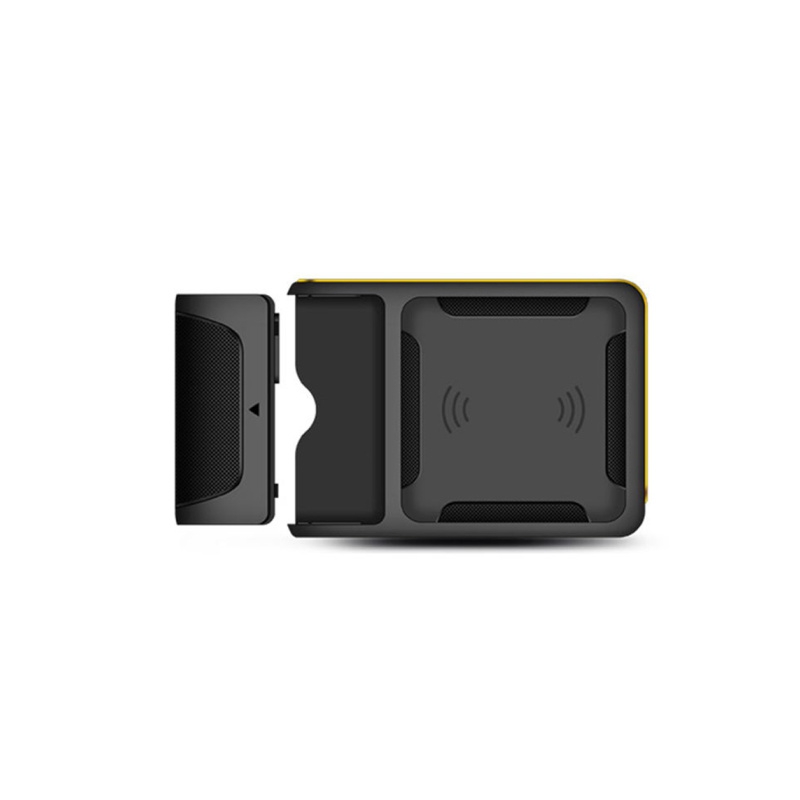

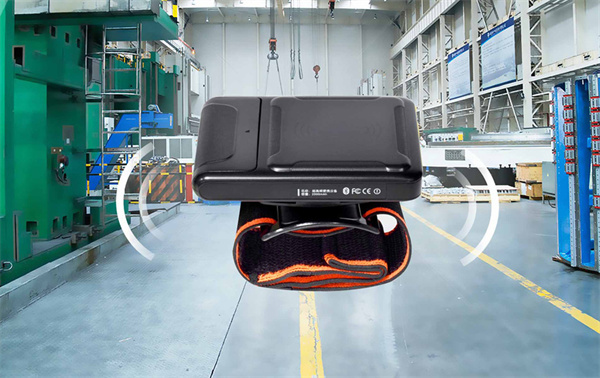

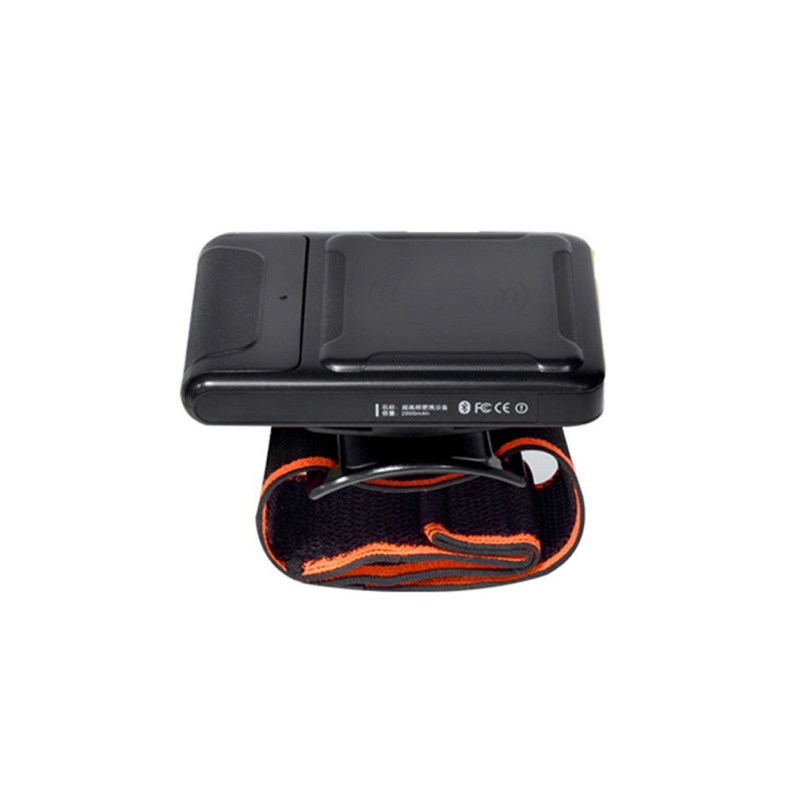

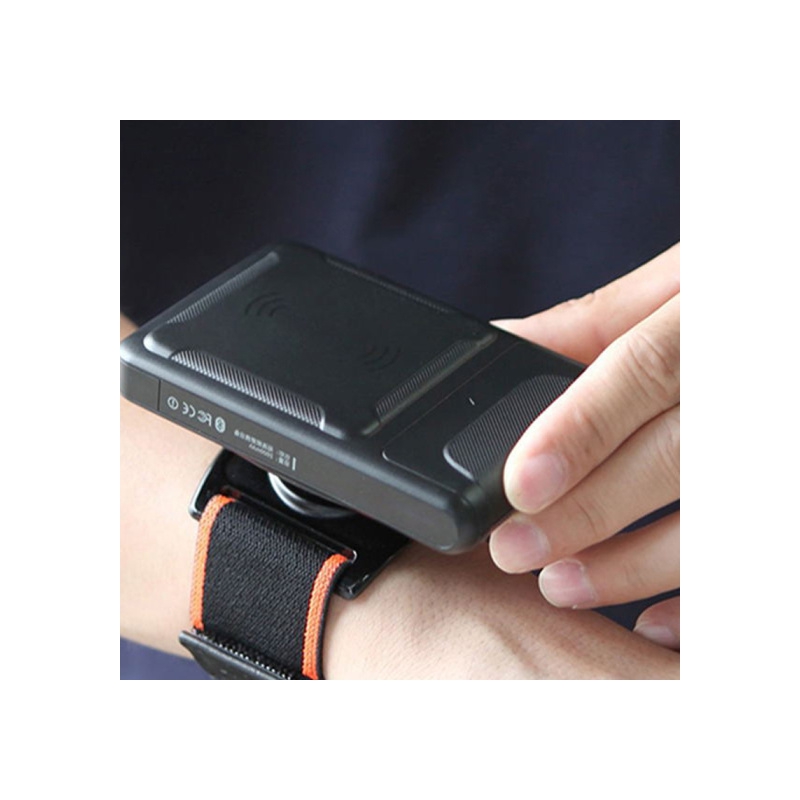

WEARABLE BLUETOOTH UHF RFID READER VH-B74 ●Dimension 108 mm x 78 mm x 18 mm, Weight 200g ●Interface Type C,UsB ,Keypad ON/OFF, SCAN ●Battery 2000 mAh, removable Max charging current 5 V / 1.5 A Charging time about 2 hours ●System SupplyAndroid/l0S SDK SecuritySupport RFlD encryption module (reserved) |  |
Model | VH-B74 |
Performance Inde | |
| Dimension | 108 mm x 78 mm x 18 mm |
| Weight | 200g |
| Interface | Type C, USB |
| Keypad | ON/OFF, SCAN |
| Battery | 2000 mAh，removable Max charging current 5 V / 1.5 A Charging time about 2 hours |
| Indicators | Charging indicator (red indicator light is always on when charging) Full power indicator (green indicator light is always on when fully charged) Battery indicator (when the battery is greater than 20%, the blue indicator is always on; when the battery is less than 20%, the blue indicator is always flashing.) Bluetooth connection status indicator (when the light is off, the Bluetooth status is unpaired; when the light is on, the Bluetooth status is paired.) Work indicator light (when the label is scanned, the indicator light flashes once) |
| Development Environment | |
System | Supply Android/IOS SDK |
| Security | Support RFID encryption module (reserved) |
| Working Environment | |
| Operatingtemp | -20oC to 50oC |
| Storage temp | -40oC to 70oC |
| Humidity | 5% RH- 95%RH (non-condensing) |
Protection grade | Waterproof, dustproof, enclosure protection grade IP65 |
| Drop standard | Resistance to 12m natural drop |
| Data Communication | |
| Type C USB | Data communication through USB connection |
| Bluetooth | Support Bluetooth 4.0, cooperate with APP or SDK to realize user information interaction |
| UHF RFID | |
| RFID module | VM-61, based on lmpinj Indy R2000 chip |
| Antenna | Circular polarization (3dBi) |
| Frequency | 920-925MHz/902-928MHz/865-868MHz |
| Protocol | EPC C1 GEN2/ ISO18000-6C |
| Power | 1W (30dBm, support +5~ +30dBm adjustable) Optional 2W (33dBm, work for Latin America and etc.) |
| Reading distance | >9 meters (outdoor open environment，Impinj MR6 label) |
| Group read rate | Up to 900 tags/sec |
| Accessories | |
| Standard accessories | Chinese/European/British/American power adapter optional, 100-240V input, 5V2A output, used with data cable DC-R5-USB |
| Optional accessories | Wristbands, armbands, magnetic pad, etc. |
