| Main Features： | |
 Qualcomm Eight Core Chip |  5.5-inch screen |
 6000mAh battery |  IP 65 1.5-meter drop test |
 WiFi/4G/Bluetooth |  CE certification, FCC |
| function： | |
 UHF RFID |  QR code |
 Fingerprint |

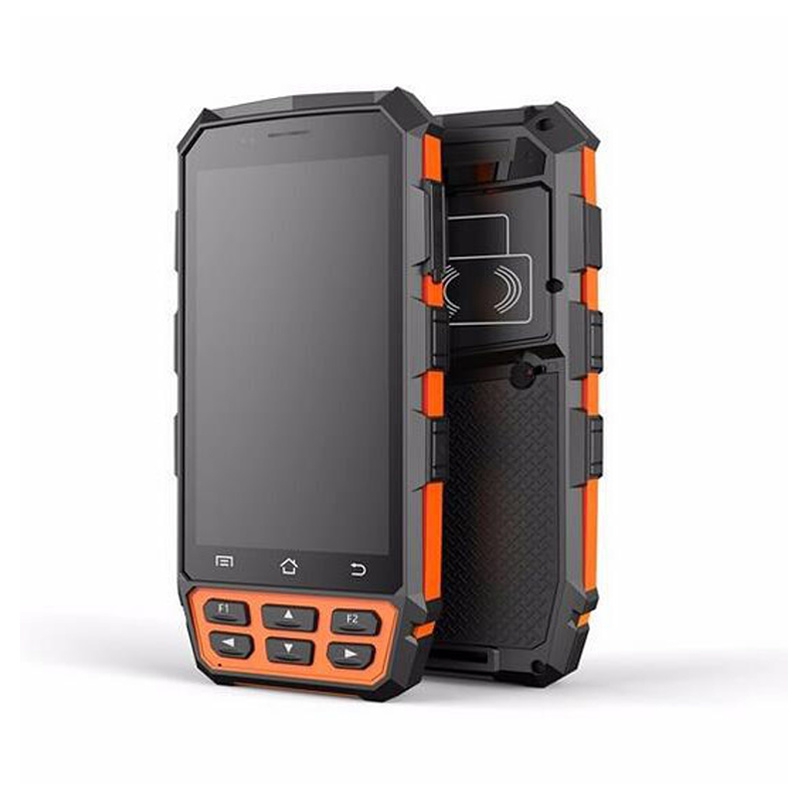

ANDROID UHF RFID HANDHELD READER VH-71T ●Processor Cortex A53 quad core 1.3GHZ Memory Capacity ROM:EMMC16GB RAM:LPDDR22GB ●Android 7.0 , high speed UsB 2.0 interface, 3.5 stick interface for charging ●TCS1 Biometric fingerprint(LCtype),256x360pixel ●ID card reading (Optional) Ministry of Public Security ID card reading |  |
| Purchase code (product model) | VH-71T |
| Specifition | |
| Processor | Cortex A53 quad core 1.3GHZ |
| Memory Capacity | ROM：EMMC 16GB RAM： LPDDR2 2GB |
| OS | android 7.0 |
| Display | 5.0 inch IPS screen, resolution 720*1280, HD Dead-Zone Free, visible in the sun |
| Micro SD Card | Support 32G MICRO SD card |
| GPS | Channel: 12 channels Types of Reception: L1, C / A code, with carrier phase smoothing Reacquisition: < 1s Error range: + -5 meters |
| Data Transmitting | high speed USB 2.0 interface，3.5 stick interface for charging |
| Camera（Optional） | Back camera 8MP with flash light |
| Fingerprint(Optional) | TCS1 Biometric fingerprint（LC type），256x360pixel |
| ID card reading (Optional) | Ministry of Public Security ID card reading |
| Wireless communication | |
| GPRS（standard） | GPRS, EDGE , 4-band 900/1800，850/1900 |
| WCDMA（TDLTE FDDLTE +TDD WCDMA+GSM） | band 850/1900/2100，Cat.8 HSDPA Cat.6 HSUPA |
| WIFI（standard） | 2.4G/5G， IEEE 802.11a/b/g/n/ac |
| bluetooth（Optional） | Bluetooth 4.0 |
| 1D（Optional Honeywell N431X） | |
| barcode | The scanner supports major 1D：Code 39、Code 93、Code 128、Codebar、EAN-13、EAN-8、UPC-A、UPC-E、ITF 14、UCC/EAN-128、ITF 25、Matrix 25、EAN-128、ISBN |
| Read range | 0 cm～50 cm |
| Read rate | First read rate≥99％，error rate ≤0.01％，Rejection rate≤0.01％ |
| 2D（Optional） | |
| Honeywell-6603 | Read long range ，read rate high，decoding speed，error rate≤0.01％ |
| RFID （optional） | |
| UHF（915MHz/865MHz） | 1.5-2M read range Read operation for 900MHz tag EPC C1 GEN2 / ISO18000-6C(with related tags and antennas), supports 865 ~ 868MHz or 920 ~ 925MHz |
| HF(13.56MHz） | 0 ~ 7cm read and write distance for ISO15693, ISO14443 dual-protocol 13.56MHz tags (tag and antenna related) |
| LF | 125K/134.2K animal tag |
| PSAM | Support two PSAM card |
| HF（CPU card） | Support CPU card read and write，use with PSAM |
| Active Near Field Communication (optional) | |
| Active 2.45G | Outdoor 200m，200 tags can be read all at once |
| 433M | Read range more than 200m，Adjustable Distance |
| ZIGBEE | Applicable wireless networking data collection |
| Battery performance | |
| battery | 4500mAh lithium polymer battery, standby time: more than 200 hours, working time: more than 10 hours, charging AC adapter (2A) |
| standby time | After the battery is fully charged, turn off the wireless communication function standby 360 hours, to normal operatio |
| Charge time | ＜4.5 hours |
| Charge work time | More than 10 hour （full charge one time） |
| Work environment | |
| Working temperature | -20℃~50℃ |
| Storage Temperature | Temperature -20℃~70℃ |
| Storage humility | 10％～90％RH，no condensing |
| Physical parameters | |
| Weight | Less than 450g（Including battery, charger does not include） |
| size | 170*85*7mm |
| Accessories | |
| standard | A lithium battery, charging head 1, DC charging cable 1, USB data cable 1 |
